For mixing and dspersing the high viscous materials(100,000 ~1,000,000 mPas), conventional type’s mixers such as stirrer or homogenizer must encounter the barriers for treating them because they are designed for mixing the low viscous materials. On the other hand, while orbiting, turning and rotating upon its axis, the chamber creates the centrifugal forces in a horizontal direction and rotation creates the vector force in a vertical direction. Vector sum is obtained and performed by adding each corresponding vector. The gravity force(G force) for mixing and dispersing which is drawn from equation with these vectors and high viscos materials are mixed and dispersed perfectly in a short period of time. Centrifugal force also gives good advantageous point for defoaming inside the samples which must be prevented against the oxidation, diffusion, air dispension and denaturation.

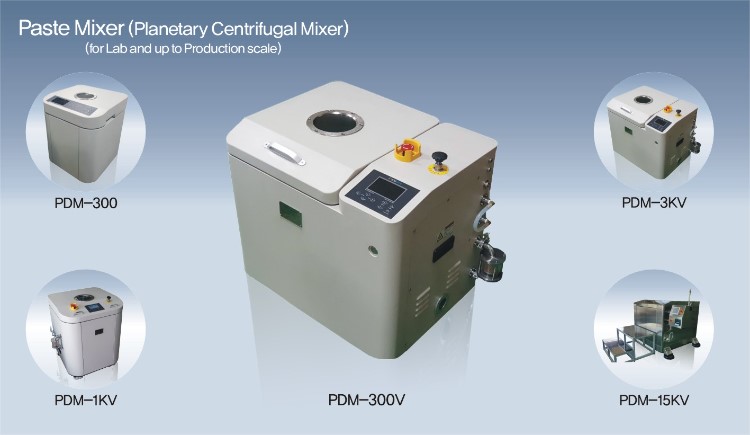

Introduction of paste mixer series

The Tool for Mixing & Dispersing

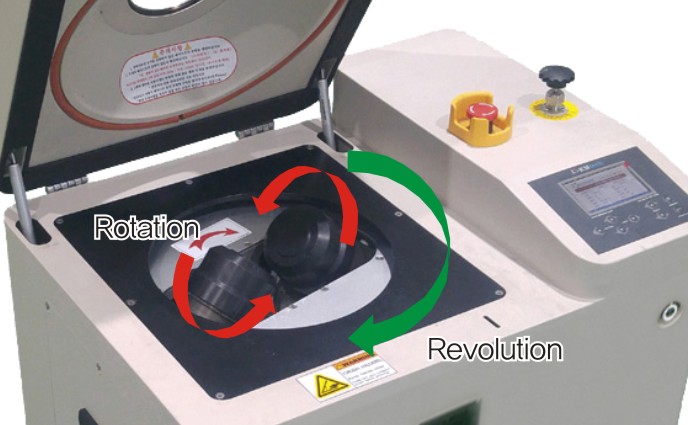

The core technology of paste mixer is designated by the performance of perfect mixing and dispersing with the vector sum caused by revolution and rotation movement. The centrifugal force in a horizontal direction have the heavy density’s materials moving from up to down. On the other hand, another vector in a vertical direction created by rotation have the heavy density’s materials moving from down to up.This movement repeats continuously inside the sample and this is core origin for mixing and disepersing for high viscous materials.
