Designed for perfect dispersion with beads (Horizontal type)

Mechstar^® DS Horizontal Mill is designed for perfect dispersion with beads including two-separated vessel, chamber cover. Providing easily adjustment device of motor belt, safe-treatment device in mechanical seal trouble, this system is fabricated with various kinds of hardened Cr alloy steel, SUS 420J2 and Zirconia etc. This DS Horizontal Mill is fully-developed horizontal bead mill that could be available to produce  production scale through special design of acting vessel. This generates the active moves of the beads guaranteed the perfect performances(high and constant energy).

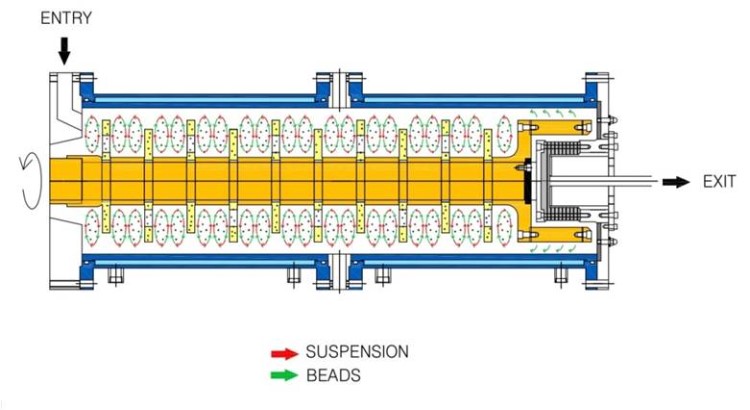

 Inside the DS Horizontal Bead Mill

*Easy handling of the machine in the operating and the maintenance

*With easily change of discharge screen and bead size,

*Approach the product from middle range dispersion to extra-fine dispersion

*Highly efficient and dynamic centrifugal separation system

*Capable design for circulating operation and multi-pass operation

*Variable speed control system of main motor and feeding pump

*Two separation system of bead: Gap-disk type and Gap-screen type

*Special shaft seal system: Double-acting mechanical seal with special back-pressure device

*Grinding beads of different materials and size

*Manufacturing process and quality control that are state of the art

*Easy operation of the mill thanks to the well-designed control concept

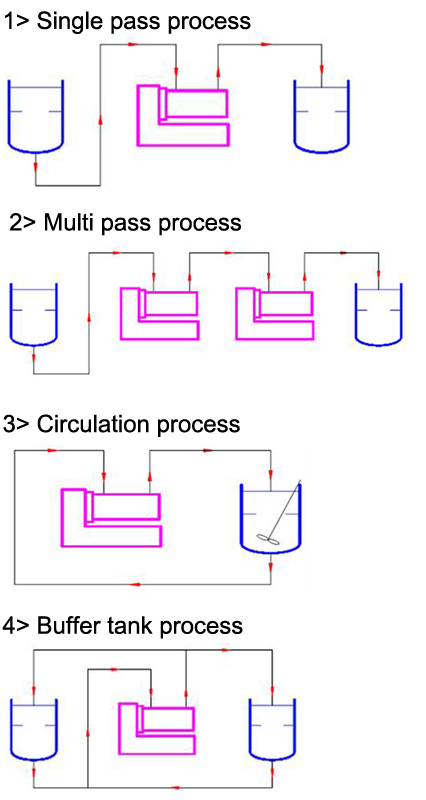

Various arrangement concepts for production scale
