Designed for KM Bead Mill without mechanical seal and separator
The agitator shaft activates the grinding media with high intensity through the whole grinding chamber. Even though this system has no screen for separating the beads and sample, the highly efficient devices are suitable for product separation and grinding media through the special design of structure. And this system also do not encounter the situation of ascending pressure inside the vessel chamber caused by sample clogging into the holes of screen.

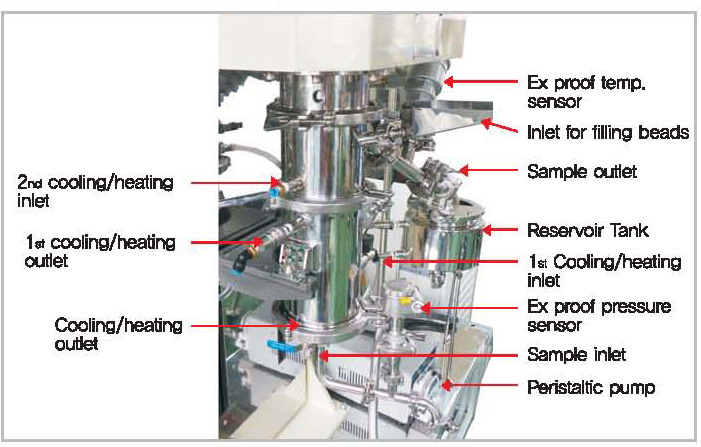

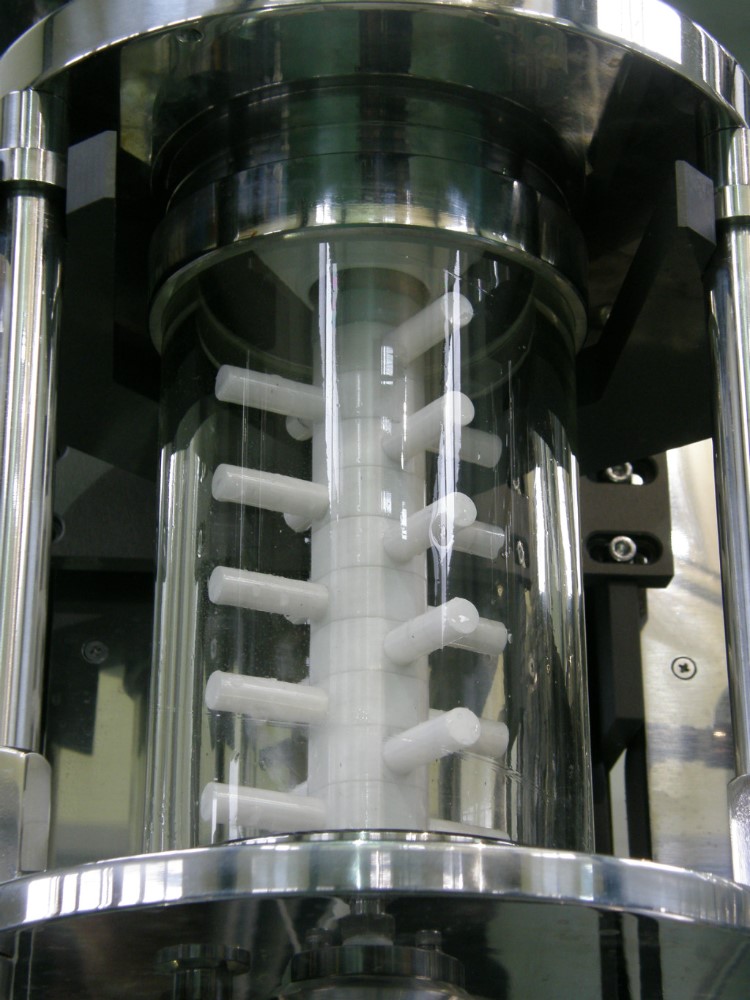

Inside the KM bead mill

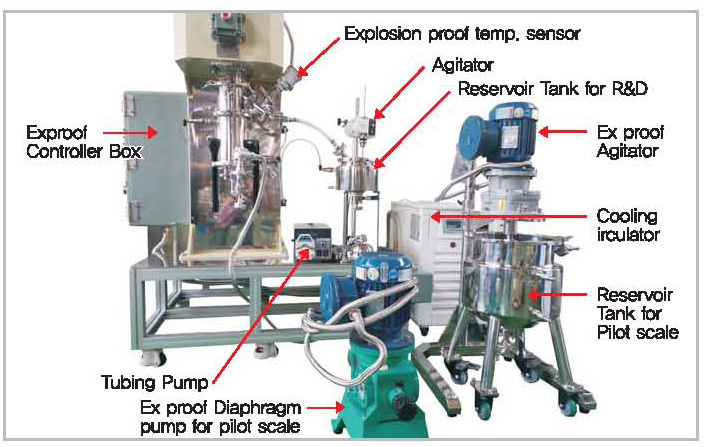

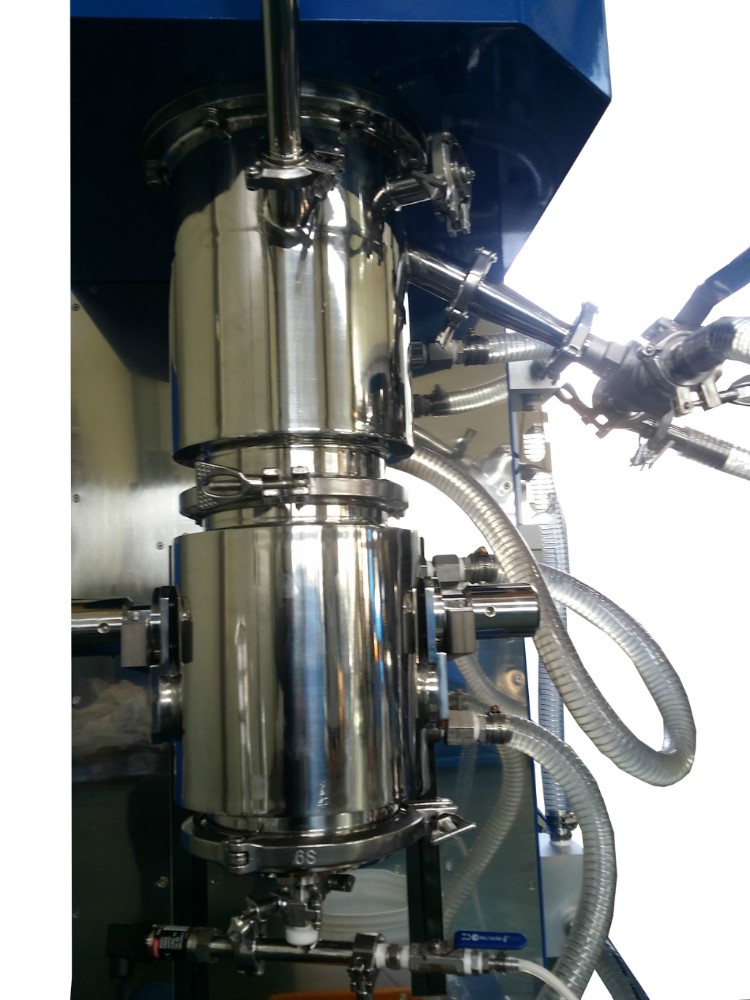

Outside the KM bead mill
*Motorized lifting and lowering the vessel chamber
*Free screen type of mill (No worry of pressure rising inside the chamber)
*Sealless type of mill (Reducing the maintenance cost)
*Lid with safety sanitary clamp lock, quick and easy to operate
*Integrated CIP SIP design
*Design suitable for hot water steam sterilization and chamber pressure design suitable for 8 bar of water steam
*RPM-control of the agitator drive
*Vertical mixing and mill
*Method for suction and dispersion of powder with medium
*Homogenizing with beads in the recirculation
*Materials: SUS420J2, Cr Alloy, Zirconia, SiC ceramic etc
*Control and automation via touch screen
