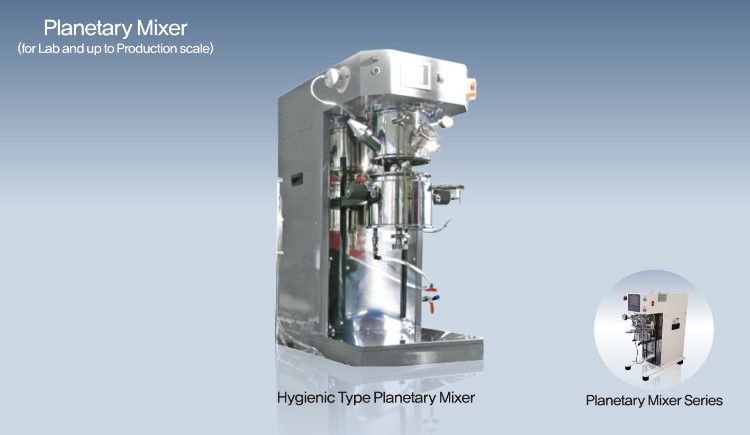

Planetary(disper) Mixer is an invaluable multi-purpose mixer for mixing and kneading of solid pigments and liquid materials with high viscosity.

The rotation of the two blades and one orbital motion can make the mixture a highly effective function with interval time of rotation and detailed clearance between blades and mixing chamber.

  .

*Sample volume : 0.3 L: ~ 200 L

*Wide variety ofuse from mixing of dry powder particle materials for kneading of high viscous material of 1,000,000 cps
*The vessel can be sealed, allowing for mixing in a vacuum. An optional container with jacket makes available quick heating or cooling
*Contains two twisted blades that move simultaneously on their own axises while orbiting the vessel in a planetary motion to reduce 'dead space' and promoting uniformed process

*Temperature senser monitors the sample condition in the vessel (option)

Motion of Planetary (Disper) Mixer

Broad ranges of industries and in the research and development labs and production facilities for semiconductors, liquid crystrals, paints, pharmaceuticals, cosmetics, food prodcutions and such electronic materials as resin and metallic paste (adhesive, ink, ceramic, foundation, pack, tooth paste, ointments, various kidns of matal pastes, fluorescent pastes, solder paste, secondary batteries)
