Designed for pulverizing the dried material without contaminatin caused by mechanical moves

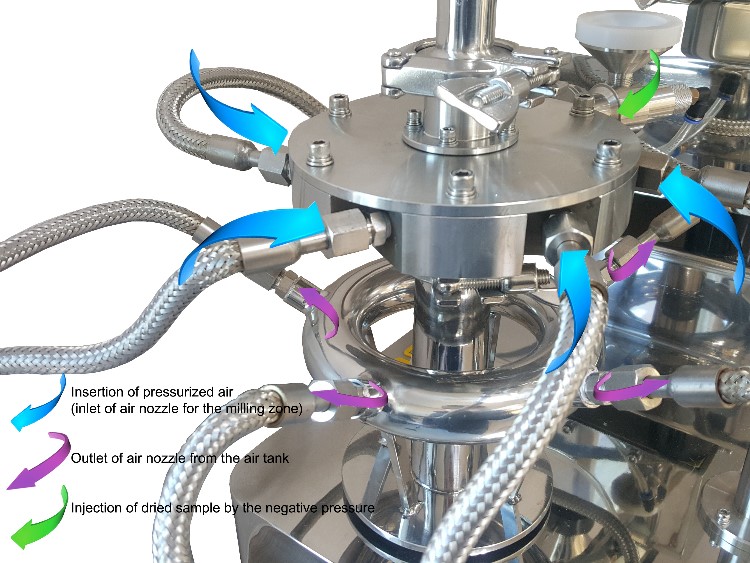

The pulverization has taken place in the chamber as the processed materials are driven at near sonic velocity(pressurized air) around the perimeter of the toroidal chamber. Excellent particle size reduction can be achieved as a result of the hgih velocity collisions between particles. As particles are reduced in size and progressively lose their mass, they naturally migrate toward the central discharging port. Finally the precise classification is done via the cyclone with the dust collector.

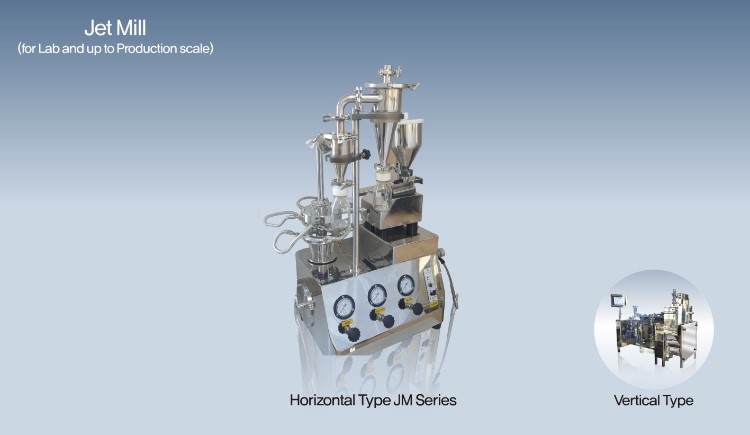

*Yield rate of the sample : 50 g ~ 50 kg per hour (horizontal type jet mill)

*The pressure drop accompanied by the temperature drop at the discharging port of milling zone (good for heat-sensitive materials and low melting point materials)

*Cyclone separators

*Bag filter (collecting the fine dust)

*Easy to clean and replacement

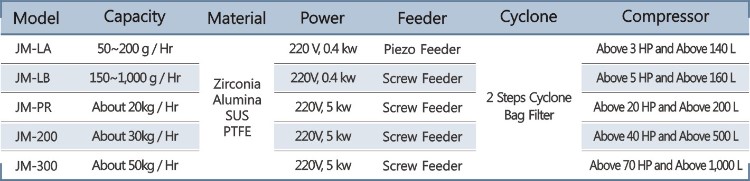

*The requirement of air for JM-LA : 20 HP (power consumption), 2.5 ton/min, 5~9 bar (air pressure), details for other models (scale up) : by our specialist

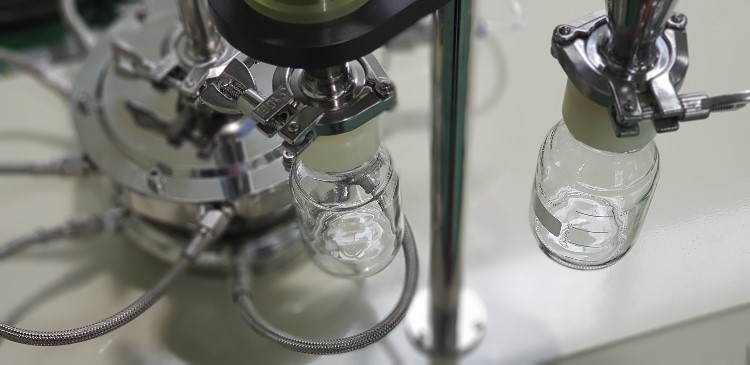

Cyclone bottle for JM jet mill

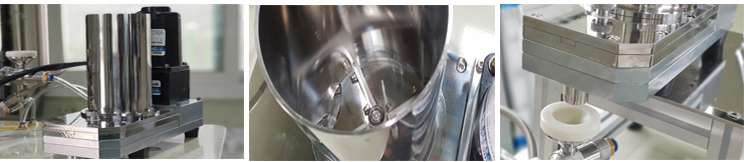

Sample feeder for JM jet mill
